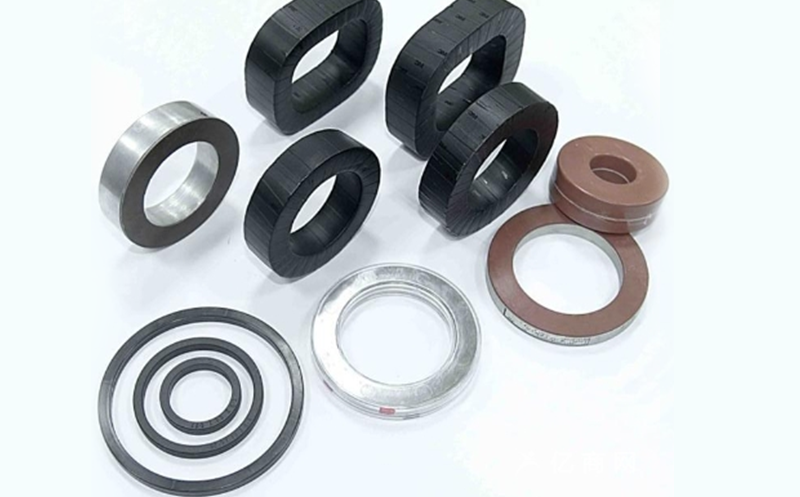

纳米晶电流互感器铁芯
纳米晶电流互感器铁芯 Nano-crystalline Current Transformer Cores for Power Use
互感器铁芯的导磁性能越好测量误差就越小,精度越高。要求低安匝数,小变比时,冷轧硅钢达不到测量精度,而坡莫合金铁芯因饱和磁感应强度较低及成本高的缘故使用大大的受限制。纳米晶合金互感器铁芯因高导磁率及高饱和磁感等优异性能被广泛应用于精密电流互感器,零序电流互感器,高压电力系统互感器等电气设备中。
性能特点 Charactreistics
高饱和磁感应强度及高导磁性-互感器精度高,精准化,小型化,线性度高;
High permeability &High Saturation induction Bs-Increase CT's accuracy,leavel, Smaller volume&High linearity. l
良好的温度稳定性--可在-55 至 120℃长时间工作
Good temperature stability--Keep stable from -55 to120℃for long time.
性能指标 Performance Index
项目 Item |
指标 Performance |
项目 Item |
指标 Performance |
指标 Performance |
1.52 |
饱和磁致伸缩系数 λs Magnetostriction |
20×10-6 |
居里温度 Tc(℃) Curie temperature |
570 |
密度ρ(g/cm3) Density |
7.20 |
晶化温度 Tx(℃) Crystallization |
500 |
电阻率δ(μΩ.cm) Resistivity |
130 |
硬度(Hv) Hardness |
880 |
叠片系数 Stacking factor
|
>0.75 |
